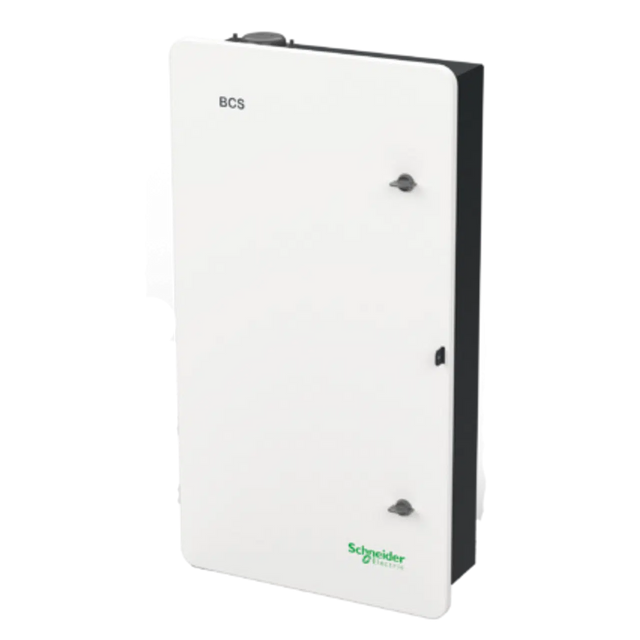

When paired with Schneider Electric XW Pro inverters, the Backup Control Switch (BCS) automatically disconnects from the grid during an outage, allowing the system to provide backup power to the home. Certified to UL standards for USA, The Backup Control Switch is used for larger XW Pro systems requiring up to 200 A-rated MID or service entrance installation.
Features
- Top or bottom entry for grid input
- Fast 50 ms transfer from grid connected to backup power operation
- Connect up to 4 XW Pro inverters for up to 27 kW continuous and 48 kW peak backup power capability
- Outdoor rated enclosure
Specifications:
- Nominal Voltage: 120/240 VAC single phase
- Maximum current rating: 200 Amps
- Enclosure type: NEMA Type 3R outdoor rated
- Dimensions: 35″ x 19″ x 7 3/4″ (889 x 485 x 196mm)
- Weight: 30 lb (13.6 kg)
