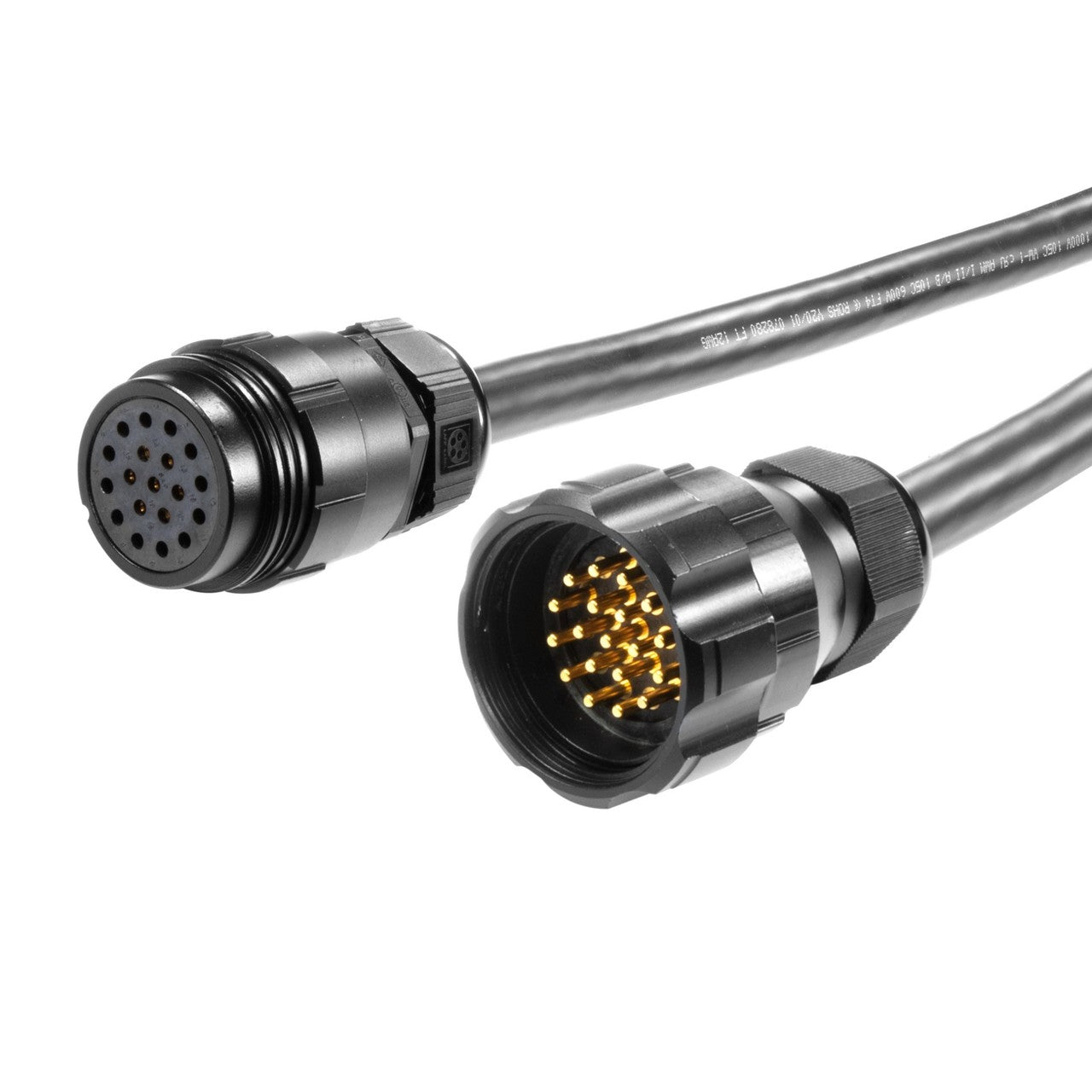

Elite Core 19 Pin Soco Extension Male to Female Lighting Power Cable with CEEP Connector, 150 Foot
CEEP 92 series (CPT)
Key Features
- A Twelve (12) Gauge
- Fourteen (14) Conductor
- Bare Copper with PVC Insulation
- Reverse Planetary Laid
- Rugged
- Oil Resistant
- PVC Jacketed
- Highly Flexible Multi-Conductor Cable
Technical Specifications
Conductor Data
Material Bare Copper
Gauge 12 AWG
Stranding 65 x 30
Insulation Data
Material Polyvinylchloride
Nominal Wall Thickness .022”
Diameter (primary) .130”
Cabling Data
Number of Conductors 14
Conductor Identification Cond. 1 Red, No Number
Cond. 2 – 12 White, Black Number
Cond. 13 Green
Cond. 14 Green with Yellow Stripe
O/A Tissue Tape
Conductor Arrangement Is Directly Compatible with Phase 3, Socapex and Veam VSC 19 Pin Connectors
Jacket Data
Material Polyvinylchloride (Oil Resistant)
Color Black
Markings White Lettering
Nominal Wall Thickness .080”
Diameter (OD) .738”
Product Ratings
Wt. / M feet Nominal 535 lbs./ 1M feet (.53 lbs./ft.)
Temperature Range -20C to 105C / 90C / 75C
Voltage 1000 Volts / 600 Volts
