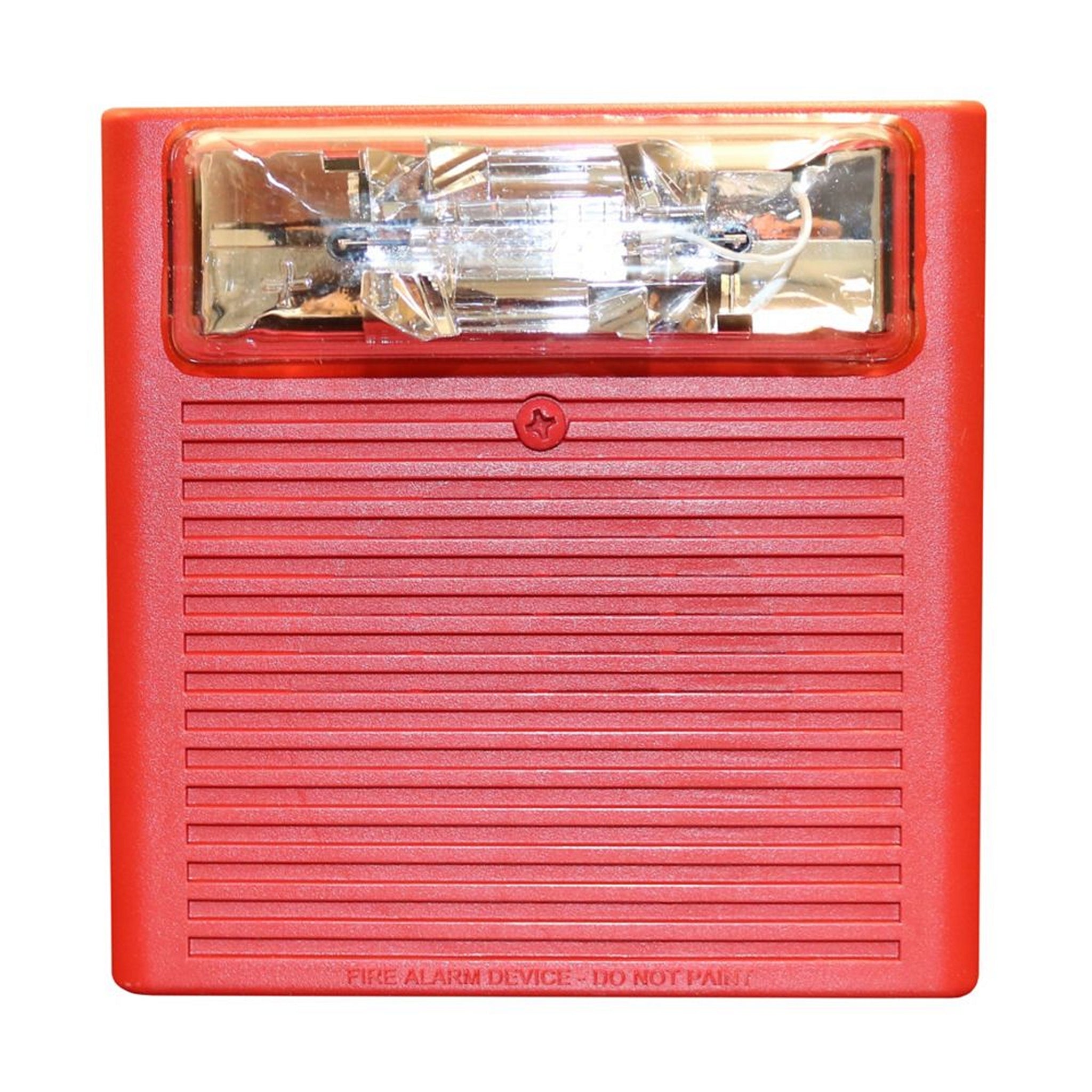

Eaton ASWP-2475W-FR Wheelock ASWP Weatherproof Horn Strobe, Red Sale Cheapest Pice

Eaton ASWP-2475W-FR Wheelock ASWP Weatherproof Horn Strobe, Red – The Ideal Solution for Outdoor Applications.

Wheelock offers a comprehensive range of UL dual-listed strobe models that meet both UL1638 and UL1971 requirements. These weatherproof devices are perfect for outdoor applications, including horn strobes, speaker strobes, and strobes, and comply with UL 1638 and UL 1971 standards.

With a broad temperature range of -40 Degrees F to 150 Degrees F (-40 Degrees C to 66 Degrees C), Wheelock’s weatherproof appliances are designed to withstand rain, humidity, and corrosion, while also providing various strobe intensity options. These appliances can cover a large area, with up to 185 candelas for wall mounting and 177 candelas for ceiling mounting per NFPA 72 strobe spacing tables.

To enable weatherproof mounting, Eaton offers the widest selection of mounting options for surface or unique semi-flush installation. Models are available for surface mounting to Wheelock weatherproof backboxes on walls or ceilings. Customers can mount weatherproof appliances to a recessed electrical box without the need for an external weatherproof backbox with WPA and WFPA kits for semi-flush installation.

All models can be synchronized using Wheelock DSM sync modules, power supplies, or other manufacturer’s panels incorporating the Wheelock patented sync protocol. Using the Wheelock patented sync protocol, the horn output of horn strobes can be independently controlled on 2-wire circuits. MTWP horn strobe models are 4-wire appliances; the strobes can be synchronized while the audible can be connected to a coded fire alarm system. MT horns may be synchronized, using the temporal Code 3 horn setting.

Key Feature’s

• UL dual listed with UL1638 and UL1971 requirements
• Weatherproof strobes, horn strobes, and speaker strobes
• Listed for outdoor applications under UL 1638 and UL 1971
• Extended temperature range of -40 Degrees F to 150 Degrees F
• Meet or exceed UL outdoor test requirements for rain, humidity, and corrosion resistance
• Multiple strobe intensity options
• Widest choice of mounting options for surface or semi-flush installation
• Synchronization options using Wheelock DSM sync modules, power supplies, or other manufacturer’s panels
• Independent control of horn output on 2-wire circuits using Wheelock patented sync protocol
• MTWP horn strobe models are 4-wire appliances, suitable for synchronized strobes and connection to coded fire alarm system

Technical Specifications

PRODUCT NAME
Eaton Wheelock ASWP weatherproof horn strobe
CATALOG NUMBER
ASWP-2475W-FR
UPC
786697290121
PRODUCT LENGTH/DEPTH
2.5 in
PRODUCT HEIGHT
4.8 in
PRODUCT WIDTH
4.8 in
PRODUCT WEIGHT
0.494 lb
COMPLIANCES
Not Applicable
MOUNTING METHOD
Wall
HOUSING COLOR
Red
INDOOR/OUTDOOR
Outdoor
HOUSING MATERIAL
UV stabilized plastic
LETTERING
FIRE
VOLTAGE
24 V
OPERATING TEMPERATURE
-40 Degrees F to 150 Degrees F (-40 Degrees C to 66 Degrees C)
COMPLIANCE AND STANDARDS
CSFM
UL
FM
MEA
BFP
ULC
