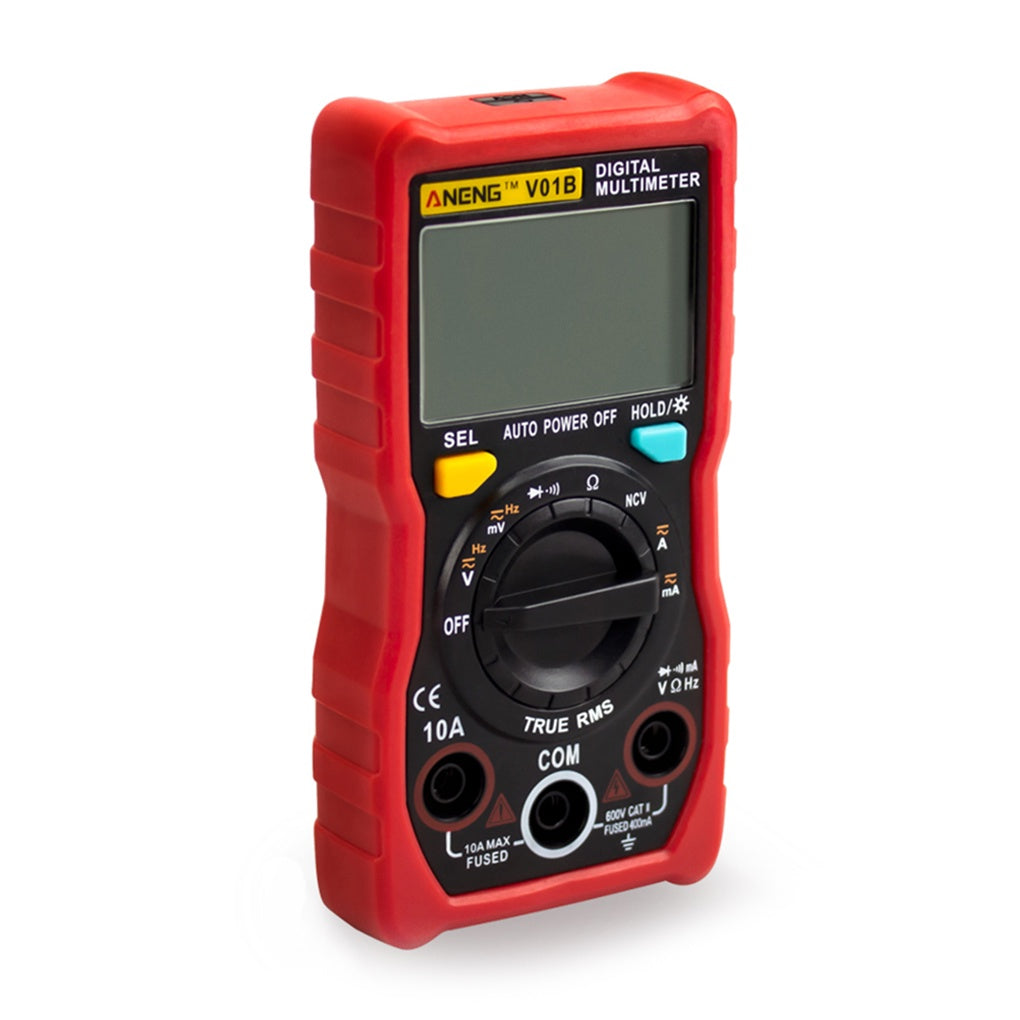

Digital Multimeter v3 V01B Low Shipping Fee Online

Are you looking to buy a Digital Multimeter in Australia?

Features:

This product is a battery-powered, true-RMS, auto-ranging digital multimeter with a 4000 counts. LCD display and backlight/flashlight, readings are visible in the dark. This product is a battery-powered, true-RMS, auto-ranging digital multimeter with a 4000 counts. “OL” will be shown on the display when the input is out of range. Examine the connection of the test leads and the insulation of the product before measuring voltage higher than 36V DC or 25V AC.

Specification:

Item Type: Digital Multimeter
Model: V01B
Material: ABS
Optional Colors: Black, Red, Orange, Blue, Green
Battery Type: 2 x AAA Batteries(not included)
Weight: Approx. 207g



ANENG V0XB Series

V01B function: AC and DC voltage and current measurement, resistance measurement, diode, continuity measurement, frequency measurement, NCV function

V02B function: AC and DC voltage and current measurement, resistance measurement, diode, continuity measurement, frequency measurement, NCV function, temperature measurement.

V03B function: AC and DC voltage and current measurement, resistance measurement, diode, continuity measurement, frequency measurement, NCV function, capacitance function measurement

V04B function: AC and DC voltage and current measurement, resistance measurement, diode, continuity measurement, frequency measurement, NCV function, capacitance function measurement, temperature measurement

Description:

This product is a battery-powered, true-rms, auto-ranging digital multimeter with a 4000 counts, LCD display and backlight/flashlight.

Specifications
Display(LCD)	4000 counts
Ranging	Auto
Material	ABS/PVC
Update Rate	3 times/second
Ture RMS	√
Data Hold	√
Backlight/Flashlight	√
Low Battery Alert	√
Auto Power Off	√



Mechanical Specifications
Dimension	120*60*33mm
Weight	137.5g(w/ batteries)
Battery Type	1.5V AAA Battery * 2(not included)
Warranty	One year
Environmental Specifications
Operating	Temperature	0~40℃
	Humidity	<75%
Storage	Temperature	-20~60℃
	Humidity	<80%



Electrical Specifications
Function	Range	Resolution	Accuracy	MAX.Value	Other
DC Voltage (V)	4.000V	0.001V	±(0.5%+3)	600V
	40.00V	0.01V
	400.0V	0.1V
	600V	1V
DC Voltage (mV)	40.00mV	0.01mV		400mV
	400.0mV	0.1mV
AC Voltage (V)	4.000V	0.001V	±(1.0%+3)	600V	Frequency Response: 40Hz-1kHz
	40.00V	0.01V
	400.0V	0.1V
	600V	1V
AC Voltage (mV)	40.00mV	0.01mV		400mV
	400.0mV	0.1mV
DC Current (A)	4.000A	0.001A	±(1.2%+3)	10A	MAX.Current:10A(no more than 15 seconds) No Voltage input at this mode Frequency Response(AC): 40Hz-1kHz
	10.00A	0.01A
DC Current (mA)	40.00mA	0.01mA		400mA
	400.0mA	0.1mA
AC Current (A)	4.000A	0.001A	±(1.5%+3)	10A
	10.00A	0.01A
AC Current (mA)	40.00mA	0.01mA		400mA
	400.0mA	0.1mA



Package list:

• 1 x Multimeter
• 1 x Test Lead
• 1 x Manual
