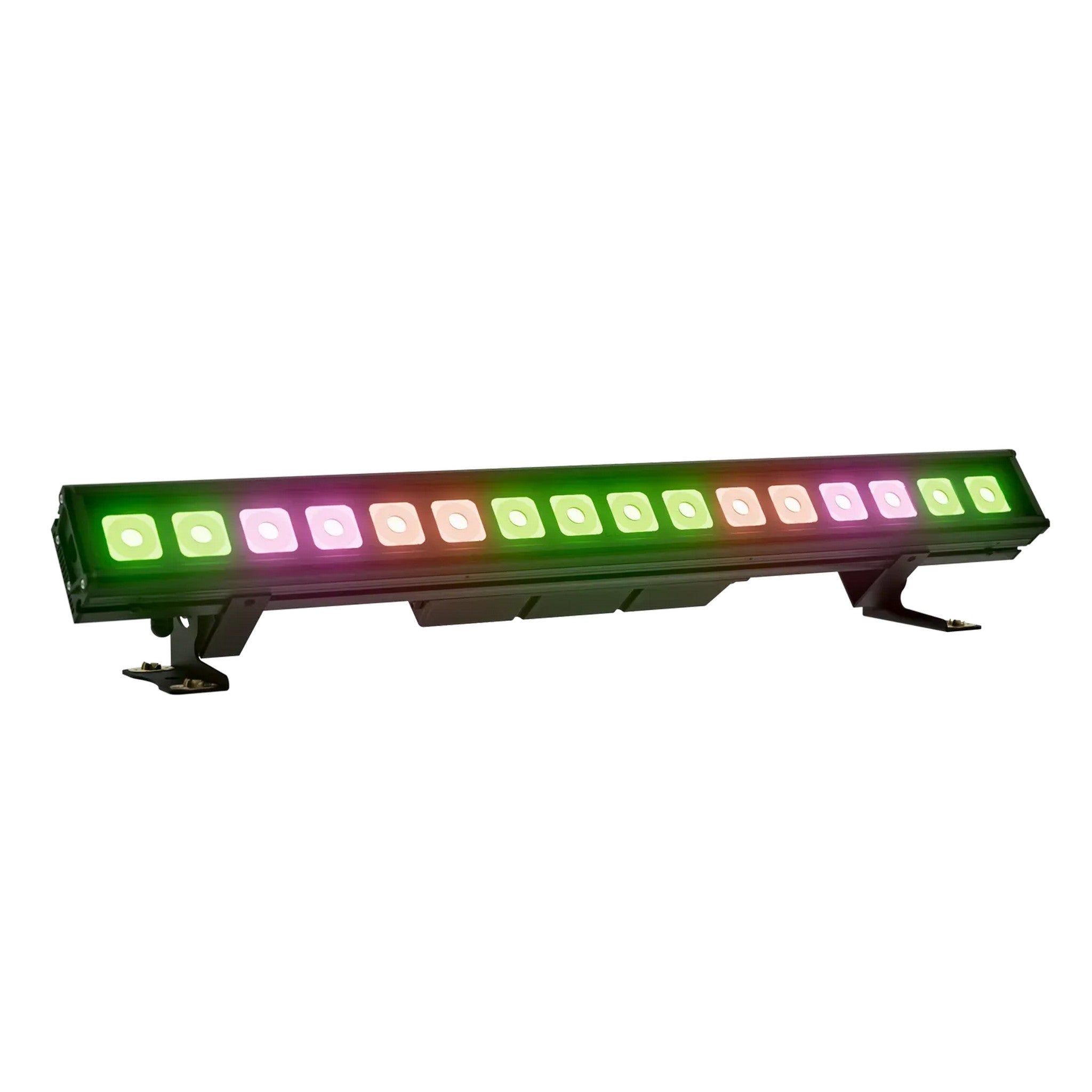

STICKnado Hammerhead Lighting Fixture

The STICKnado Hammerhead Lighting Fixture stands out as an exceptional choice for those seeking top-tier lighting performance and versatility. Engineered for both indoor and outdoor use, this fixture excels with its IP65 rating, making it resistant to dust and water, ensuring reliable operation in various environmental conditions. Its innovative design incorporates a flicker-free constant-current LED driver, which guarantees smooth and consistent light output, ideal for professional applications.

Equipped with 16x 20W RGBL 4-in-1 LEDs, the Hammerhead offers impressive color mixing capabilities, allowing you to create a vibrant spectrum of hues and effects. The 10-45° asymmetrical beam spread ensures that light is distributed efficiently, providing excellent coverage and minimizing shadows. Built-in color and pixel chase macros via DMX further enhance the versatility of this fixture, offering dynamic lighting effects that can be customized to suit any event or installation.

The Hammerhead features a robust design with efficient convection cooling, ensuring reliable performance even during extended use. Dual mounting brackets with locking knobs provide secure and stable installation, while the interlocking housing design allows for the connection of multiple fixtures, making it easy to expand your lighting setup. Additionally, the fixture includes a 5-pin DMX in/out and powerCON-compatible AC in/out, facilitating seamless integration with other equipment.

Key Features

• High-performance color mixing with 16x 20W RGBL 4-in-1 LEDs
• 10-45° asymmetrical beam spread for optimal light distribution
• Flicker-free constant-current LED driver for smooth output
• IP65 rated for outdoor use, ensuring durability in various conditions
• Built-in color and pixel chase macros via DMX with 33 built-in macros and 3 customizable programs
• Virtual color wheel effects for enhanced visual appeal
• Efficient convection cooling for reliable performance
• Dual mounting brackets with locking knobs for secure installation
• Interlocking housing design for connecting multiple fixtures
• 5-pin DMX in/out and powerCON-compatible AC in/out for seamless connectivity

Technical Specifications

Dimensions
Width: 39.4 inches (1000.3 mm)
Depth: Fixture: 3.9 inches (100.1 mm), Bracket: 5.9 inches (149.4 mm)
Height: 6.6 inches (167 mm)
Weight
19.9 lbs (9 kg)
Power
Operating Voltage: 100-240VAC, 50-60 Hz
Power Consumption: 192W, 1.66A, PF .99
Light Source
LED: 16x 20W RGBL 4-in-1 LEDs
Optical
Beam Angle: 10-45° asymmetrical beam spread
Thermal
Max. Operating Temp.: 104 degrees F (40 degrees C) ambient
Control
Protocol: USITT DMX-512, RDM
DMX Channels: 3/4/5/10/14/22/38/48/64 or 70-channels
Input/Output: 5-pin XLR Male/Female
Operating Modes: Standalone, Master/Slave, Color Preset
Warranty
2-year limited warranty, does not cover malfunction caused by damage to LEDs.
