1.200″ TAPER PER FOOT BALL JOINT & TIE ROD TAPER REAMER #5921 Cheap Pice

ABOUT

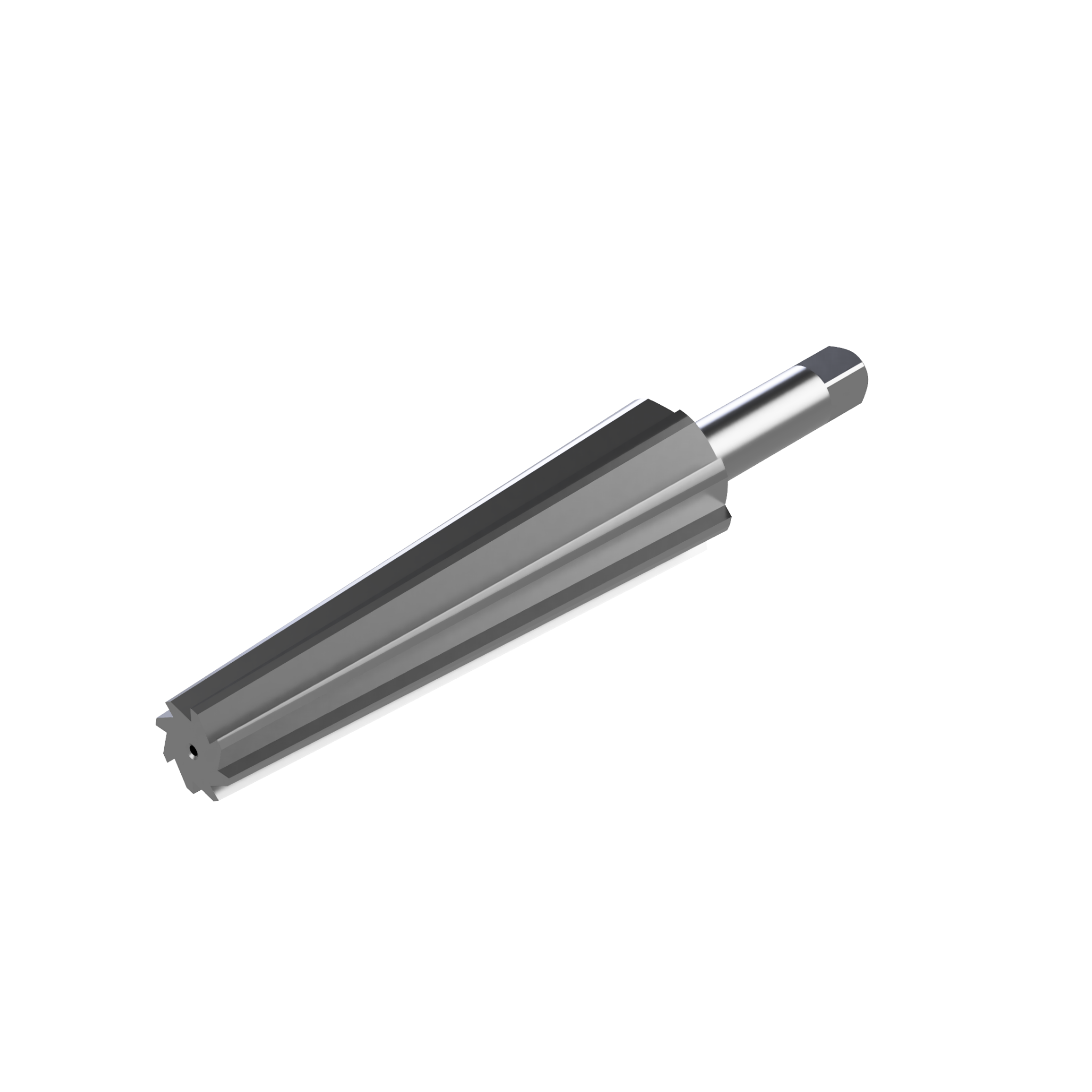

Our item #5921 is an oversized 1.200” taper per foot or 6 degree METRIC spiral flute ball joint and tie rod taper reamer made out of M2 high speed steel. This METRIC reamer is used for larger ball joints and tie rod ends found on construction vehicles, construction equipment, fire trucks, box trucks, semi-trucks, farm equipment, fork lifts, military vehicles and equipment, etc. This reamer will work for anything over 3/4” on the small end at 1.200” taper per foot.



SPECIFICATIONS

Over All Length: 6 ½”

Over All Flute Length: 4 ½”

Large End Diameter: 1.200”

Small End Diameter: ¾”

Shank Diameter: 1/2”

Flute Design: Straight

Flute Count: 8

Material: M2 High Speed Steel

Hardness: 64 Rockwell



USE

This reamer will do production runs and cut material quickly at speeds from 100 to 180 RPM. The use of a full pecking cycle and oil-based coolant is strongly recommended for maximum performance and finish. This reamer is designed to be used in a CNC or manual machine with a 1/2” collet for extra rigidity. It can also be used by hand with a large tap wrench. Keep in mind, this reamer is not a drill. Run this reamer at half the speed (RPM) and twice the feed that you would a drill.



More Information

This M2 high speed 1.200” taper per foot ball joint and tie rod taper reamer is brand new and manufactured with pride in the U.S.A. by XKUT. We are the manufacturer of this reamer. We offer an in-house $20.00 per reamer re-sharpening service (priority 2-day shipping to customer is included) on all XKUT reamers.
